Alexues Aluminum Thermal Break Pivot Entry Door

A Bold, Modern Pivot Entrance with Thermal Break Performance

Product Overview

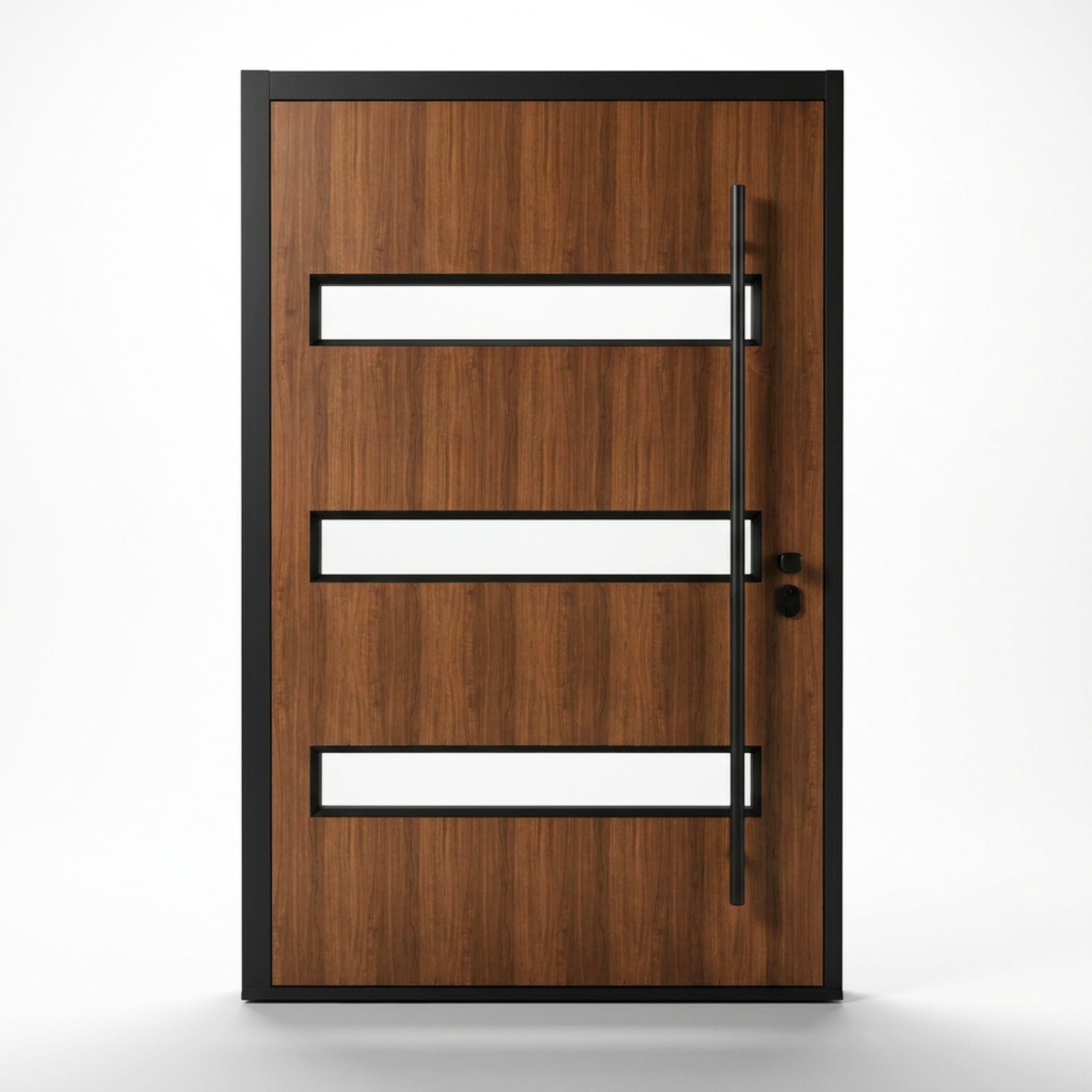

Make a striking first impression with the Alexues Aluminum Thermal Break Pivot Entry Door. Part of our Alexues Series collection, this door pairs a slim, modern aluminum frame with a pivot hinge system for smooth, effortless swing on oversized entries. The frame is finished in a powder-coated black on the exterior for a clean, contemporary look, while the door panel is finished in a wood-tone color for architectural warmth — giving you the sleek profile of aluminum with the visual richness of wood on the panel face.

Bottom Line Up Front: A thermally broken aluminum pivot entry door with a black powder-coated frame, wood-tone panel finish, and insulated Low-E glass — built for a modern, oversized entrance with true pivot operation.

---

Key Features & Benefits

Thermal Break Aluminum Frame

• 150mm Frame Depth: Substantial frame profile built for large-format pivot entries
• 3.0mm Profile Thickness: Heavy-duty aluminum extrusion for structural rigidity
• Thermal Break Construction: Separates interior and exterior aluminum to reduce heat/cold transfer through the frame
• Powder-Coated Black Frame: Durable, fade-resistant black exterior finish
• Wood-Tone Door Panel: Panel face finished in a wood-look color for warmth and architectural contrast against the black frame

True Pivot Operation

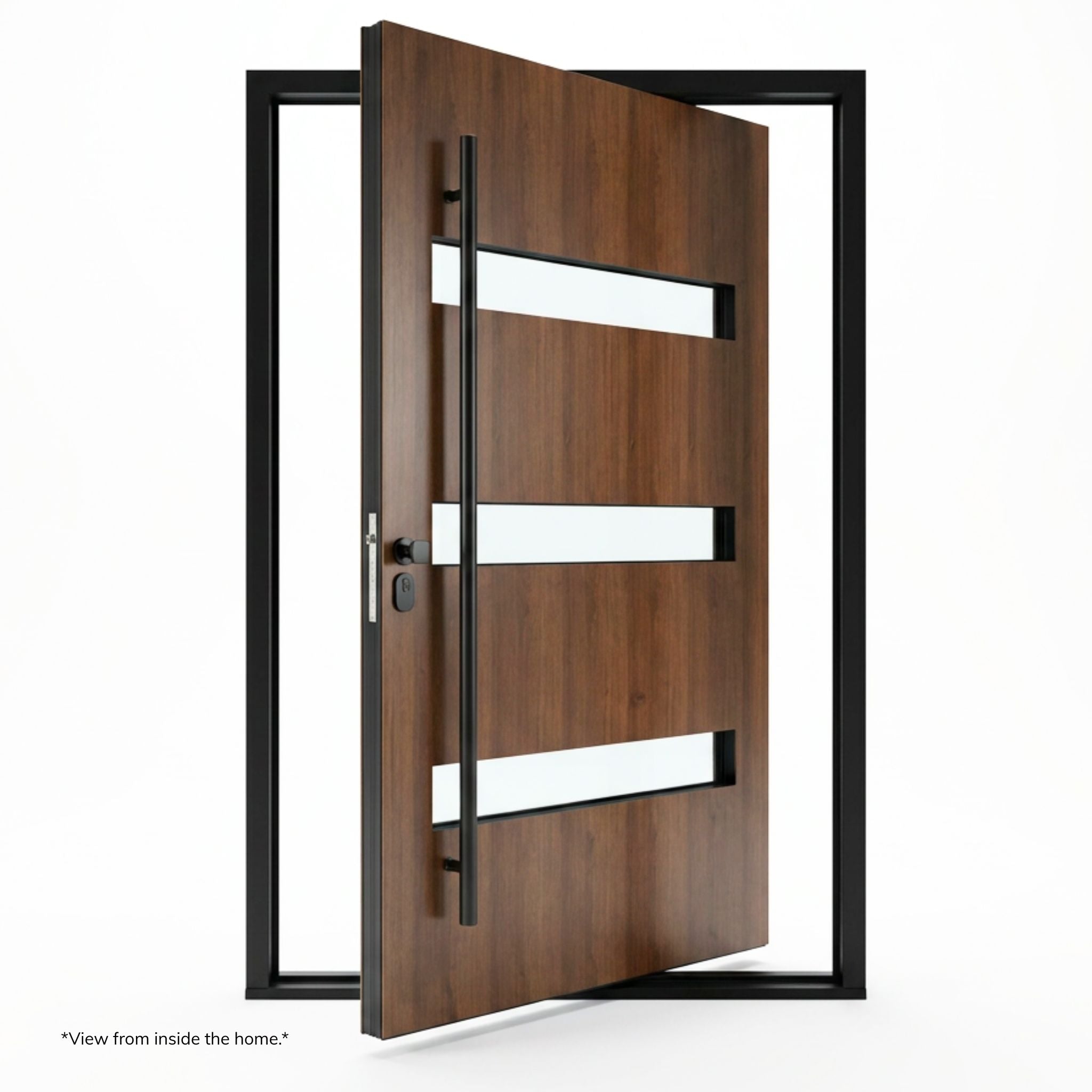

• Pivot Hinge System: Door swings on a top-and-bottom pivot point rather than side-mounted hinges, suited to oversized and heavy door panels
• Inswing Configuration: Opens to the inside, viewed from the outside
• Black Hardware: Handle and pivot hinge hardware finished in black to match the frame

Insulated Low-E Glass

• Dual-Pane Insulated Glass Unit: 6mm clear tempered glass + 9A Argon gas fill + 6mm clear Low-E tempered glass
• Clear Glass: Maximizes natural light and visibility
• Low-E Coating: Helps reduce heat transfer and UV exposure for improved energy performance
• Argon Gas Fill: Added insulating layer between panes for better thermal efficiency
• Tempered Safety Glass: Both panes tempered for impact resistance and code-compliant safety glazing

Clean, Unadorned Design

• No Grid: Clean sightlines with no decorative grille
• No Blinds Inside: Simple, uninterrupted glass for a modern look
• No Screen: Streamlined pivot door profile

---

Technical Specifications

• Series: 100 Series Thermal Break
• Frame Material: Aluminum, thermally broken
• Frame Depth: 150mm
• Profile Thickness: 3.0mm
• Frame Color: Powder-coated black (frame)
• Panel Color: Wood-tone finish (door panel)
• Glass Type: 6mm clear tempered + 9A Argon + 6mm clear Low-E tempered (insulated glass unit)
• Glass Color: Clear
• Grid: None
• Blinds: None
• Screen: None
• Hardware: Handle and pivot hinge, black finish
• Operation: Pivot, inswing
• View: Exterior view shown; opens inswing

---

Available Configurations

The Alexues Thermal Break Pivot Entry Door is available in two configurations:

• D1: Door panel width approximately 1434mm [56.44"], height approximately 2000mm [78.74"]
• D2: Door panel width approximately 1434mm [56.44"], height approximately 2369mm [93.35"] — an oversized option for taller entries

Frame/rough opening width shown on the spec drawing is approximately 1537mm [60.50"] for both configurations. Please confirm exact rough opening and panel dimensions against the spec drawing before publishing or quoting, as some drawing values were difficult to read precisely.

---

Ideal Applications

• Modern & Contemporary Homes: Bold black frame and wood-tone panel suit clean-lined architectural styles
• Statement Entrances: Oversized pivot format creates a dramatic, high-end entry point
• Energy-Conscious Builds: Thermal break frame and Low-E insulated glass support better energy performance at the entry
• New Construction & Custom Builds: Well suited to larger rough openings designed around a pivot door system

---

Order Your Alexues Aluminum Thermal Break Pivot Entry Door Today

Bring a modern, architectural statement to your entryway with a pivot door built for both performance and presence. Available in two sizes to fit standard and oversized openings.

Contact us to confirm sizing, swing direction, and lead time for your project.
